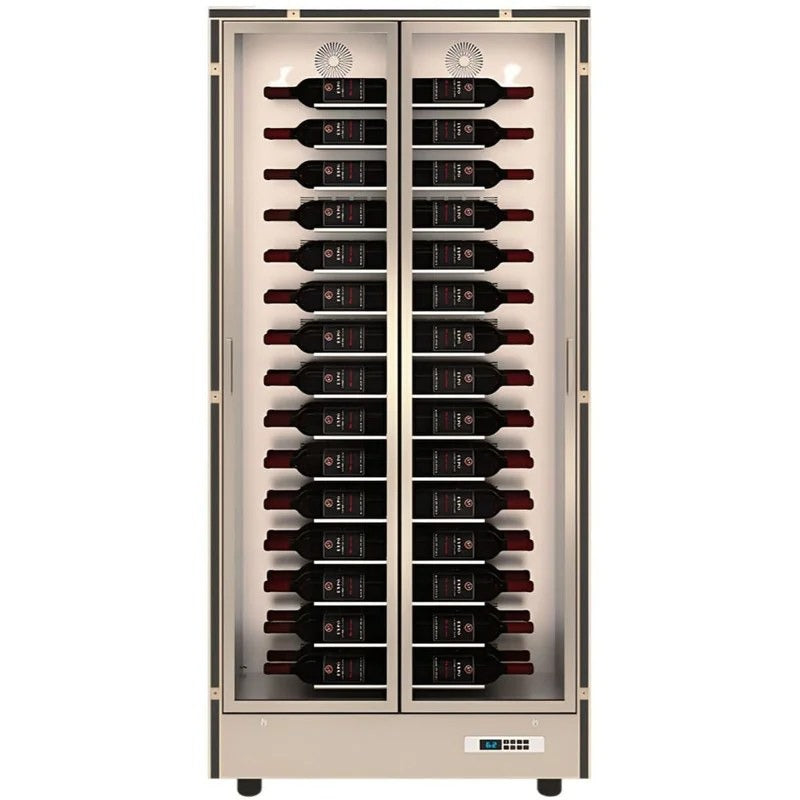

Della Marta Wine Wall – Mod 10 MD-10 with Horizontal Bottle Shelving – For Home Use

The Mod 10 range is effectively your custom-made refrigerated wine cabinet where you choose your style of frame that matches the décor and the furnishing in your home. You can even join more than one module together – this will create a truly unique piece of furniture

MD-10 can be installed as a freestanding unit, or built into a wall/alcove for a seamless finish depending on which model you choose. The Mod 10 range has a full aluminium structure and is completed with a wooden frame in a traditional or linear style.

*Pricing on website is based on L11 matte black frame, with standard LED lighting and a full frame including side panels.* Please contact us for a quotation if you would like a different finish as prices may vary.

Key Features

– Aluminium finish with warm white LED lighting

– Side-by-side hinged door (double glazed and UV treated)

– Shelf configuration: horizontal bottles. Maximum bottle height is 370mm, max. diameter is 93mm.

– Digital temperature controller (5 – 18°C)

– Rechargeable carbon filter

– Magnetic strips for the decorative trims

– Automatic defrost and automatic evaporation system

– Anti vibration system

– Inverter compressor

– Lock with key

– Ventilated and static cooling system – fan ON/OFF

– Warranty: 2 year parts and labour UK mainland and NI

– ROI warranty: 1 year parts only

Choice of 3 models (various depths)

– MD-H10: 60 Bottle capacity, 363mm depth, front glass doors

– MD-M10: 120 Bottle capacity, 515mm depth, front glass doors

– MD-C10: 120 Bottle capacity, 520mm depth, front and back glass doors (see-through)

Customise your own wine wall

– Frame: 1) Linear style or 2) Traditional style or 3) FIT cladding (freestanding installation only)

– Frame finish: choose from a range of finishes from matte black/white, laminated textured wooden finishes to even your own RAL colour and gold/silver painted finishes (prices vary). Please see the catalogue here for the range of frames and colours available.

– Bottle Configuration: the MD-10 comes with horizontal shelving only, if you would like to customise shelving, please see MD-14.

– Add optional extras (additional charges apply – please contact us to arrange this):

1) Remote control lighting (RGB multicoloured / CBD dimmable warm/white)

2) Sprayed all black (matte) internally and externally

Temperature ControlThe Mod 10 wine walls are multi temperature zone units and have a multitude of temperature options depending on whether the fans are turned on or off and the temperature the cabinet is set to.

The temperature can be set using a digital control panel which also controls the lighting, fans and defrost cycle.

Example temperature operation, if set to 4°C:

Fans off – the wine wall will operate between 4°C at the bottom and 16°C at the top.

Fans on – the wine wall will operate between 4°C at the bottom and 10°C at the top.

The use of the fans creates a smaller temperature range as the cooler air can be distributed more evenly. Please note these are examples only and the actual temperature range may differ depending on ambient temperatures.

MD-H10 specification

Dimensions: Height: 1858mm Width: 900mm Depth: 363mm

Weight: 97kg

MD-M10 specification

Dimensions: Height: 1858mm Width: 900mm Depth: 515mm

Weight: 107kg

MD-C10 specification

Dimensions: Height: 1858mm Width: 900mm Depth: 520mm

Weight: 120kg
