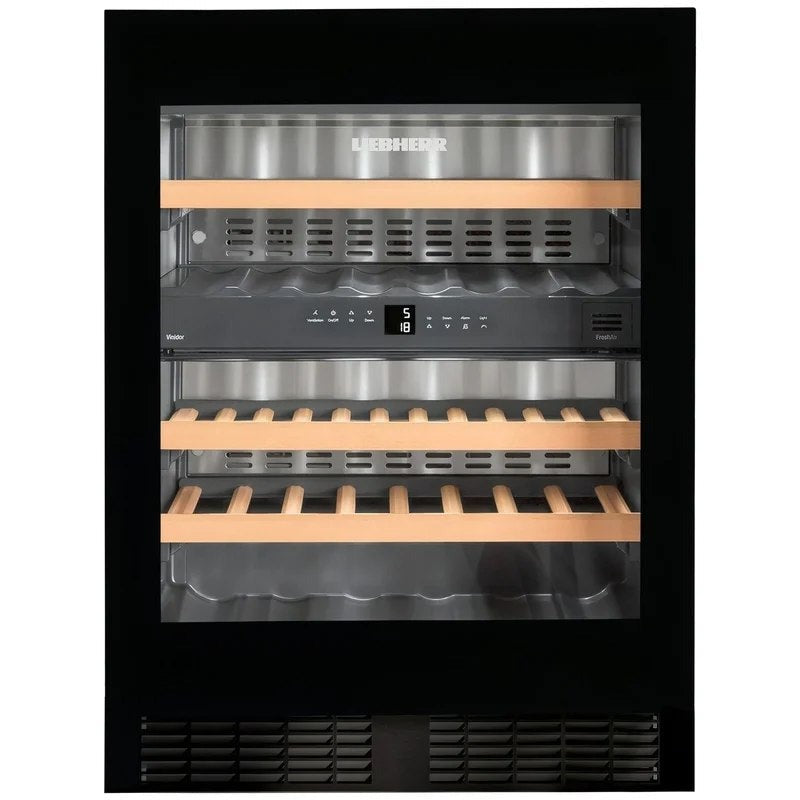

Liebherr–600mmDualZone–34Bottle–UndercounterWineCooler–UWTgb1682

The Vinidor range from Liebherr is the dual temperature zone range of wine coolers that they manufacture. Designed for service and long term storage of wine, the UWTGB 1682 is designed for undercounter use and can be built in with kitchen cabinets around it.

Highlights

• Energy Efficiency: ‘G’
• Rated capacity: 34 Bordeaux bottles
• Installation type: Built-in/Undercounter
• Colour: Black glass frame, Push to Open technology
• Dimensions: Height: 81.6m, Width: 59.7cm, Depth: 58cm
• Manufactured in Austria
• 2 Year Warranty

The UWTGB 1682 features a full glass door with a black door frame which is UV treated to prevent unwanted UV rays harming your wines. The Vinidor range is also fitted with a charcoal filter an low heat white LED lighting to showcase your wines in style.

In addition to the this, this model features the high tech tip open technology from Liebherr. Simply push the top corner and the door will open automatically. If the door isn’t opened after 7 seconds, the door will automatically close.

This model has 4 shelves in total with 3 of them being on telescopic rails to give easy access the wine collection. Designed to fit neatly into a standard 600mm housing, the UWTGB1682 sits on the floor and requires a vent in the plinth to allow for adequate ventilation – this model is also fitted with reversible door hinges, open door alarm and also a high temperature alarm to ensure if there is a fault your wines aren’t affected.

A key point to mention with Liebherr’s integrated wine coolers is how quiet they are, a leading player in premium appliances, Liebherr’s wine coolers are some of the quietest on the market to date. With a whisper quiet noise level of 36dB – you will hardly notice this wine cooler which is exactly what you want in a luxury kitchen.

SPECIFICATION

– Max Bottle Capacity: 34 Bordeaux Bottles

– Energy Efficiency Class: G

– Energy Consumption kWh/annum: 144

– Noise Output: 36dB

– Climate Rating: SN-ST (+10 to +38°C)

– Voltage: 220-240V

– 2 year parts and labour warranty with all Liebherr Wine Cabinets

– Capacity: 94Litres

– 2m Electrical Lead

Controls:

– LCD Display

– Touch buttons- control unit

– Visible and audible signals for fault warnings

– Open door alarm

– Child Lock

General Features

– Full glass door with black frame

– UV treated glass door

– Reversible door

– Forced air system

– Automatic defrost

– 100% UV light protection

– Tip Open technology

Interior Features:

– 2 temperature zones, operating between 5 and 20°C

– Convection cooling with charcoal filter for fresh air supply

– Humidity management between 55-85% (Automatic)

– White LED lighting, dimmable

– 3 shelves, 3 of which are on telescopic rails

Dimensions:

– Height: 81.6cm

– Width: 59.7cm

– Depth: 57cm

Aperture Dimensions:

– Height:82 – 87cm

– Width: 60 – 61cm

– Depth: 58cm

Weight: 48kg

PRODUCT FILES

USER MANUAL

INSTALLATION INSTRUCTIONS

INSTALLATION DIAGRAM

BOTTLE LOADING
