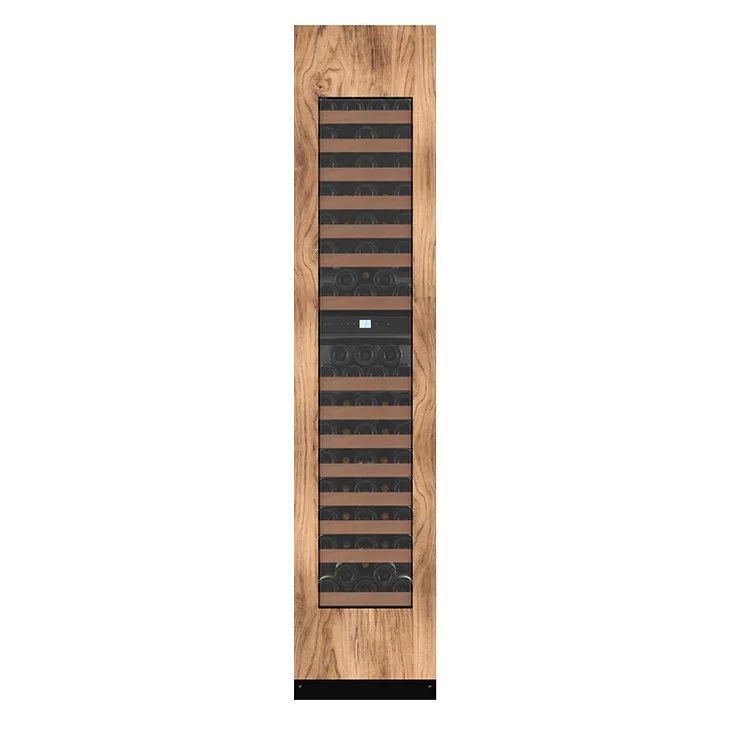

mQuvéeEdge45DPanelReady–87Bottles–TallWineFridge–Push-Pull

The Edge range from mQuvée is designed for seamless integration into any modern kitchen. This collection of 45 cm‑wide built‑in wine coolers is available in black, stainless steel, or with a panel‑ready front.

Fan assisted cooling means the temperature within the wine fridge and UV protected glass will keep your collection safe and the white LED lighting down the side walls of the cooler will lights up your bottles in style.

Highlights:

• Energy Efficiency: ‘E’
• White LED perimeter lighting
• Rated capacity: 87 Bordeaux Bottles (750ml)
• Temperature settings: 5-20°C (Dual Zone)
• Dimensions: Height: 212.4cm, Width: 44.5cm, Depth: 60cm
• 5 year warranty

The Edge 45D is fitted with 15 sapele wooden shelves giving you space for 87 Bordeaux bottles. This model also includes two foldable display shelf that can be converted into storage shelves when additional capacity is required. Larger bottles may require removing a shelf to accommodate. The Edge 45D is also fitted with an adjustable/removable plinth if fitting within kitchen cabinetry.

This wine cooler is designed for use as a built in wine fridge for home use. The cooler is front venting, allowing easy installation into your kitchen and the door fits flush with the kitchen cabinets for a smooth fit.

Please note, this product comes from Sweden and will be delivered with an adapter.

ECO-SILENT MODE

This model is equipped with an inverter compressor which means the wine fridge is already pre-set to run more efficiently and quietly to reduce energy consumption and noise level.

SPECIFICATION

– Capacity: 87 Bordeaux Bottles

– Panel ready vacuum-insulated glass door (VIG technology)

– Push/pull mechanism

– Adjustable feet (2cm)

– Reversible door

– Control panel: touch controls

– Electronic temperature display in white

– 15 vibration free wooden shelves

– Compressor cooled

– Lighting colour: White LED

– Lighting: On/Off functions

– UV protected glass

– Temperature zones: 2

– Temperature range 5-20°C

– Inverter compressor

Cooling system:

– Fan assisted cooling for even distribution of air

– Compressor mounted on vibration absorbing rubber.

– Heating and cooling system

Performance and consumption:

– Noise level: 37 dB

– Energy class E

– Power consumption 93 kWh/p.a

Dimensions:

Height: 212.4cm to 214.4cm

Width: 44.5cm

Depth: 60cm

Weight 130KG

PRODUCT FILES

INSTALLATION DIAGRAM

BOTTLE LOADING

ENERGY LABEL

INSTALLATION INSTRUCTIONS

PANEL DIMENSIONS

*Please note mQuvée products are supplied with an EU plug and adapter – if you want us to change the plug before dispatch please let us know.
