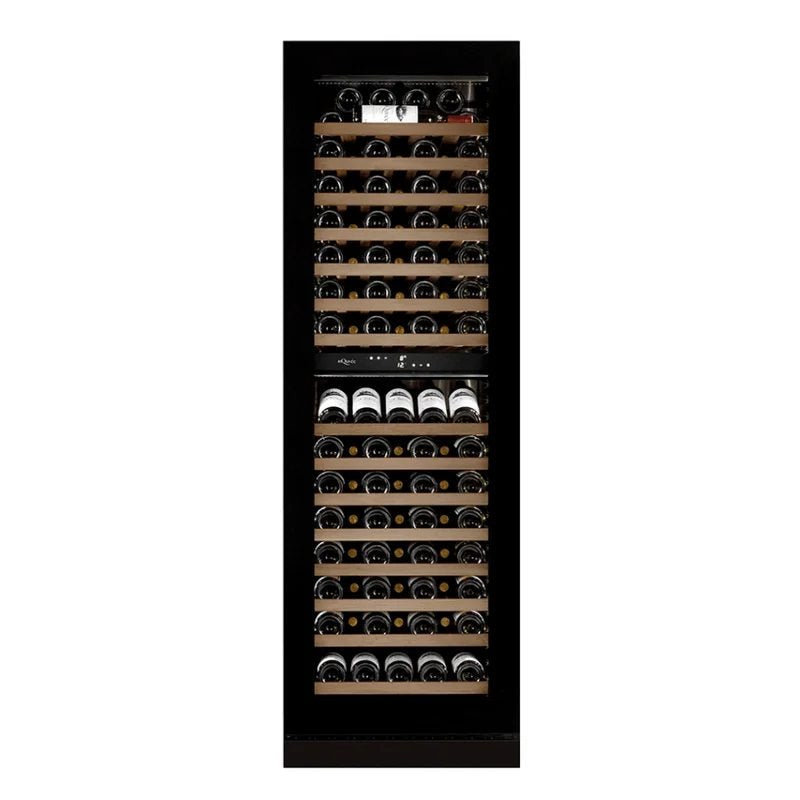

mQuvéeWineCaveInfinite187D–109Bottles–TallWineFridge–Push-Pull

The Wine Cave range from mQuvée is designed specifically for the storage wine bottles. This series of built in coolers are available in black and stainless steel. The variety of sizes available will help you find the perfect cooler to fit your requirements.

Fan assisted cooling means the temperature within the wine fridge and UV protected glass will keep your collection safe and the white LED lighting down the side walls of the cooler will lights up your bottles in style.

Highlights:

• Energy Efficiency: ‘E’
• White LED lighting
• Rated capacity: 109 Bordeaux Bottles (750ml)
• Temperature settings: 5-20°C (Dual Zone)
• Dimensions: Height: 182cm, Width: 59.5cm, Depth: 57.5cm
• 5 year warranty

The Wine Cave Infinite 187D is fitted with 15 sapele wooden shelves giving you space for 109 Bordeaux bottles. This model also includes a foldable display shelf that can be converted into a storage shelf when additional capacity is required. Larger bottles will require removing a shelf to accommodate. The WineCave Infinite 187D is also fitted with an adjustable/removable plinth if fitting within kitchen cabinetry.

This wine cooler is designed for use as a freestanding or built in wine fridge for home use. The cooler is front venting, allowing easy installation into your kitchen and the door fits flush with the kitchen cabinets for a smooth fit. For built‑in installation, the panel in front of the plinth should be removed to ensure proper air circulation. When used as a freestanding unit, the fridge looks best with the panel fitted.

Please note, this product comes from Sweden and will be delivered with an adapter.

IMPORTANT: All WineCave 187 models need to be secured to the floor to avoid any tilting before use. Installation of the anti-tilt device is not included.

ECO-SILENT MODE

This model is equipped with an inverter compressor which means the wine fridge is already pre-set to run more efficiently and quietly to reduce energy consumption and noise level.

SPECIFICATION

– Capacity: 109 Bordeaux Bottles

– Vacuum-insulated glass door (VIG technology)

– Push/pull mechanism

– Adjustable feet (7cm)

– Reversible door

– Control panel: touch controls

– Electronic temperature display in white

– 15 pull out wooden shelves

– Compressor cooled

– Lighting colour: White LED

– Lighting: On/Off functions

– UV protected glass

– Temperature zones: 2

– Temperature range 5-20°C

– Practical hinge that minimises door swing

– Inverter compressor

Cooling system:

– Fan assisted cooling for even distribution of air

– Compressor mounted on vibration absorbing rubber.

– Heating and cooling system

Performance and consumption:

– Noise level: 35 dB

– Energy class E

– Power consumption 95 kWh/p.a

Dimensions:

Height: 182cm to 189cm

Width: 59.5cm

Depth: 57.5cm

Weight 128KG

PRODUCT FILES

INSTALLATION DIAGRAM

BOTTLE LOADING

ENERGY LABEL

*Please note mQuvée products are supplied with an EU plug and adapter – if you want us to change the plug before dispatch please let us know.
