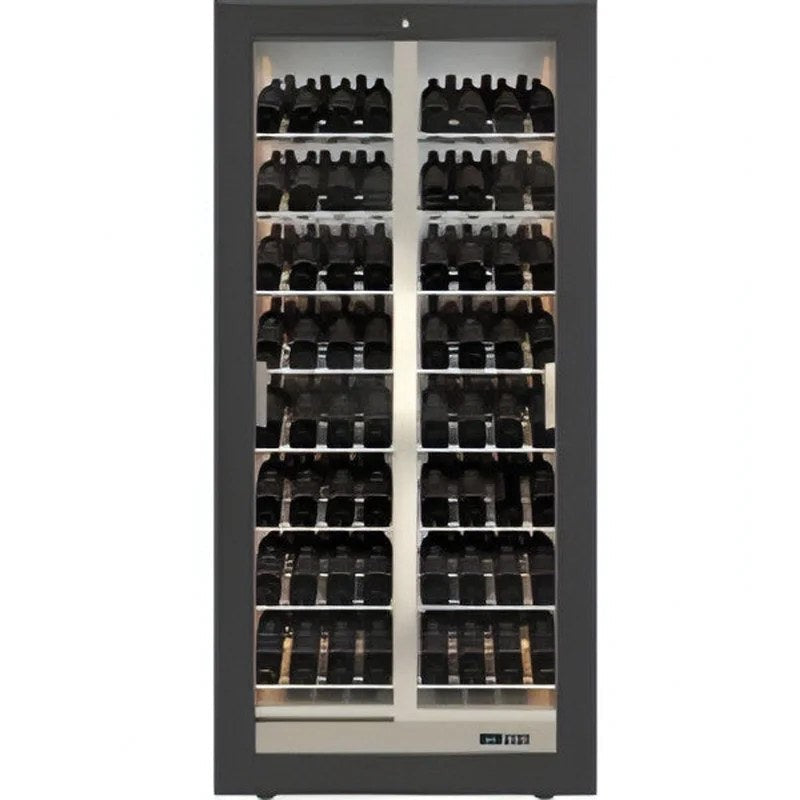

Della Marta Teca Vino Wine Wall TBP12 – Built in, with Tilted Bottle Shelving – For Restaurant Use

The Teca Vino TBP12 is from our Professional range which means it is suitable only for commercial settings such as hotels, bars or restaurants. The TBP12 has tilted shelving for displaying bottles at an angle, and it’s available in one size only. The Teca Vino has a full aluminium structure which can be covered with numerous styles of wood but as a standard, is offered with a solid wood black frame.

*Pricing on website is based on RAL9005 matte black frame, with standard LED lighting* Please contact us for a quotation if you would like a different finish as prices may vary. See the catalogue here for the range of frames and colours available.

Key Features

– Aluminium finish with warm white LED lighting (ON/OFF switch)

– Sliding doors (double glazed and UV treated)

– Shelf configuration: Tilted bottles. Maximum bottle height is 350mm, max. diameter is 95mm.

– Digital temperature controller (5 – 18°C)

– HPL / MDF frame is mounted with a snap-on system (easy installation)

– Automatic defrost and automatic evaporation system

– Anti vibration system

– Inverter compressor

– Lock with key

– Heated rails

– Ventilated and static cooling system – fan ON/OFF

– Warranty: 2 year parts and labour UK mainland and NI

– ROI warranty: 1 year parts only

Choice of 1 model

– TBP-M12: 112 Bottle capacity, 557mm depth, sliding glass doors.

Customise your own wine wall

– Frame: 1) Linear finish or 2) Dune finish

– Frame finish: choose from a range of finishes from matte black/white, laminated textured wooden finishes to even your own RAL colour and gold/silver painted finishes (prices vary).

Please use the configurator here to visualise your wine wall.

– Bottle Configuration: the TBP12 comes with tilted shelving only, if you would like alternative configurations, please see TBP-10, TBP-13, and TBP-14.

– Add optional extras (additional charges apply – please contact us to arrange this):

1) Remote control lighting (RGB multicoloured / CBD dimmable warm/white)

2) Sprayed all black (matte) internally and externally

Temperature ControlThe Teca Vino wine walls are multi temperature zone units and have a multitude of temperature options depending on whether the fans are turned on or off and the temperature the cabinet is set to.

The temperature can be set using a digital control panel which also controls the lighting, fans and defrost cycle.

Example temperature operation, if set to 4°C:

Fans off – the wine wall will operate between 4°C at the bottom and 16°C at the top.

Fans on – the wine wall will operate between 4°C at the bottom and 10°C at the top.

The use of the fans creates a smaller temperature range as the cooler air can be distributed more evenly. Please note these are examples only and the actual temperature range may differ depending on ambient temperatures.

Specification

TBP-M12 specification

Dimensions: Height 1865 x Width 874 x Depth 557mm

Weight: 12 KG
